Your Current Locaiton : Home » Product » Drive Shaft Parts » PTO Shaft Parts » PTO end yoke

PTO end yoke

We are one of the professional China manufacturers with PTO shaft parts, including tube yokes, end yokes, flanges , tubes etc. parts, The following items are the PTO parts , you can quickly find them through the following list.

Talen PTO end yoke show

General discription

Product name PTO shaft parts Marterial CK45 forging
Brand Talen, China Heat treatment Tempering on request
Production capacity 10000pcs / Month Unit price USD2–10
Min. Qty 200, depend on stock Shipment term FOB, CIF or others
General packing Rust proof Payment term T/T, L/C
Netrual packing Each put into plastic bag, then put into plywood pallet
Special packing Special packing on request
Marking General Neutral marking, macking customer’s Logo on request
Development Development according to drawings,Samples are welcome
Other Other terms on requrest.

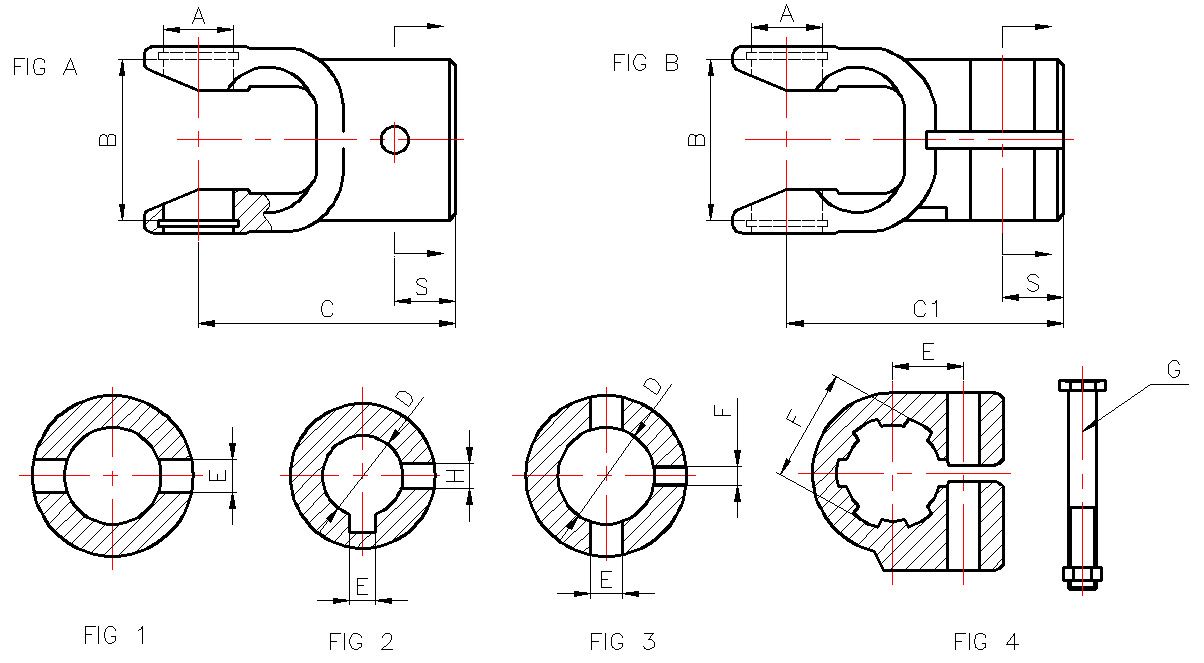

Talen PTO end yoke list

REF A B C D Fig A1 Fig A2 Fig A3 Fig B4
E E H E F C1 F
1.05.20 22 54 80 20 6 6 M6 6 M6 90 1 3/8"Z6
1.05.22 22 54 80 22 8 6 M6 8 M6 90 1 3/8"Z21
1.05.25 22 54 80 25 8 8 M8 8 M6 90
1.05.30 22 54 80 30 10 8 M8 10 M6 90
1.05.31.8 22 54 80 31.8 10 N/A N/A 10 M6 90
2.05.20 23.8 61.3 84 20 6 6 M6 6 M6 99 1 3/8"Z6
2.05.22 23.8 61.3 84 22 8 6 M6 8 M6 99 1 3/8"Z21
2.05.25 23.8 61.3 84 25 8 8 M8 8 M6 99
2.05.30 23.8 61.3 84 30 10 8 M8 10 M6 99
3.05.22 27 70 92 22 8 6 M6 8 M6 102 1 3/8"Z6
3.05.25 27 70 92 25 8 8 M8 8 M6 102 1 3/8"Z21
3.05.30 27 70 92 30 10 8 M8 10 M6 102
3.05.35 27 70 92 35 13 10 M10 13 M6 102
4.05.22 27 74.6 92 22 8 6 M6 8 M6 107 1 3/8"Z6
4.05.25 27 74.6 92 25 8 8 M8 8 M6 107 1 3/8"Z21
4.05.30 27 74.6 92 30 10 8 M8 10 M6 107
4.05.31.8 27 74.6 92 31.8 10 N/A N/A 10 M6 107
4.05.35 27 74.6 92 35 13 10 M10 13 M8 107
5.05.30 30.2 80 98 30 10 8 M8 10 M6 109
5.05.35 30.2 80 98 35 13 10 M10 13 M8 109
5.05.40 30.2 80 98 40 13 12 M12 13 M10 109 1 3/8"Z6
32.05.30 32 76 98 30 10 8 M8 10 M6 109 1 3/8"Z21
32.05.35 32 76 98 35 13 10 M10 13 M8 109
32.05.40 32 76 98 40 13 12 M12 13 M10 109
6.05.30 30.2 92 106 30 10 8 M8 10 M6 116 1 3/8"Z6
6.05.35 30.2 92 106 35 13 10 M10 13 M8 116 1 3/8"Z21
6.05.40 30.2 92 106 40 13 12 M12 13 M10 116
6.05.42 30.2 92 106 42 13 12 M12 13 M10 116
7.05.30 30.2 106.5 117 30 13 N/A N/A N/A M8 124 1 3/8"Z6
7.05.35 30.2 106.5 117 35 13 10 M10 13 M10 124 1 3/8"Z21
7.05.40 30.2 106.5 117 40 13 12 M12 13 M10 124
7.05.42 30.2 106.5 117 42 13 12 M12 13 M10 124
7.05.45 30.2 106.5 117 N/A N/A 14 M14 13 M10 124
8.05.30 35 106.5 127 30 13 N/A N/A N/A N/A 124 1 3/4"Z6
8.05.35 35 106.5 127 35 13 10 M10 13 M8 124 1 3/4"Z20
8.05.40 35 106.5 127 40 13 12 M12 13 M10 124
8.05.42 35 106.5 127 42 13 12 M12 13 M10 124
8.05.45 35 106.5 127 N/A N/A 14 M14 13 M10 124
